Description

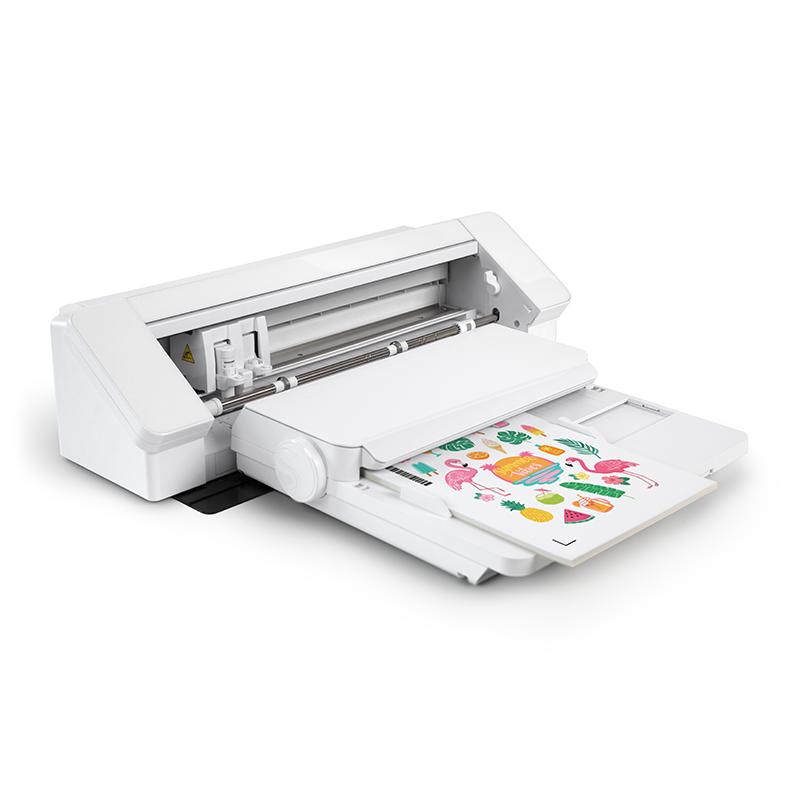

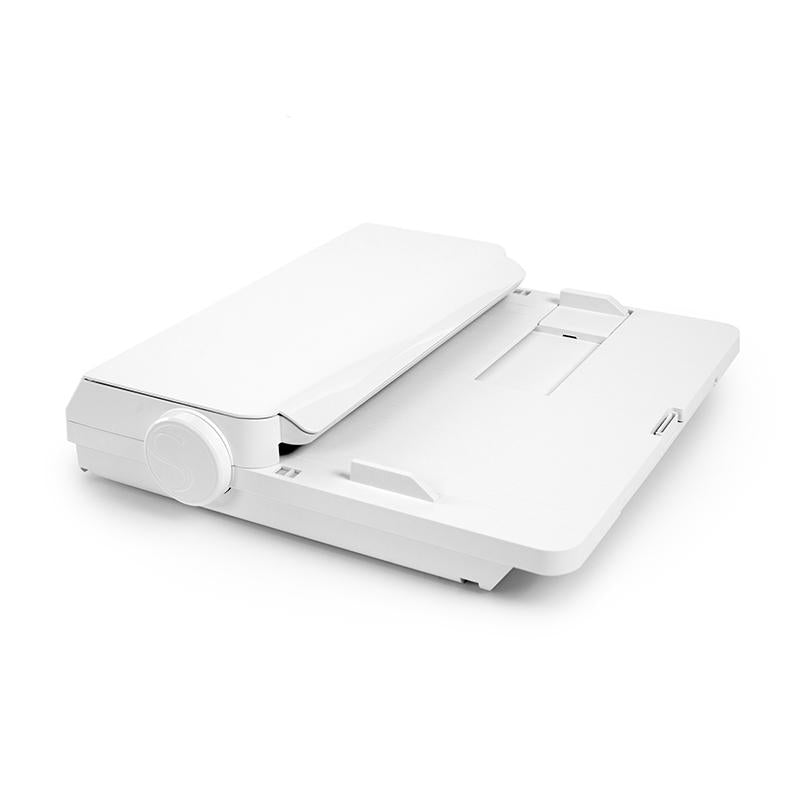

The Silhouette A3 Plus Auto Sheet Feeder streamlines large-format cutting by automating feed of rigid materials. Designed for frequent crafters and small businesses, it handles both A3 and US Letter sized sheets with precision and ease.
Ideal for projects involving sticker sheets, laminated paper, cardstock, and similar media, the feeder boosts productivity and consistency—no need to manually replace sheets after each cut.
-
Compatible Media Sizes:
- A3: 11.7 in. x 16.5 in. (297 mm x 420 mm)
- 12 in. x 12 in. (305 mm x 305 mm)
- A4: 8.27 in. x 11.7 in. (210 mm x 297 mm)
- US Letter: 8.5 in. x 11 in. (216 mm x 279 mm)
- Compatible Media Types: Sticker paper, photo paper, and other rigid sheet materials. (Curled or electrostatically charged media may not be used)
- Compatible Media Thickness: 0.18 mm ~ 0.26 mm
- Maximum Material Capacity: 20 sheets / ≤ 4.4 mm total thickness (*varies by media)
- Compatible Cutting Machines: Silhouette Cameo® Pro, Silhouette Cameo® Plus
- Interface: USB 2.0 high speed (no Bluetooth® compatibility)
- Unit Dimensions: 15.28 in. x 14.5 in. x 3.3 in. (38.8 cm x 36.8 cm x 8.4 cm)
- Unit Weight: 4 lbs 5.1 oz (1.96 kg)
- Shipping Dimensions: 18.1 in. x 15.83 in. x 5.2 in. (46 cm x 40.2 cm x 13.2 cm)
- Shipping Weight: 5 lbs 15.2 oz (2.7 kg)
- Software Requirement: Silhouette Studio® version 4.5.117 or higher
- Minimum System Requirements: Windows 8.1/10/11 or macOS 10.14 or higher, 2 GHz processor, 4 GB RAM, 2 GB available disk space, USB port, high-speed internet connection (recommended)
Package Includes:
- Sheet Feeder
- Power Divider Cable
- Positioning Base
- Safety Sheet
The Auto Sheet Feeder allows your Silhouette machine to process jobs from stacked sheets automatically. Follow these steps to set up and begin using your A3 Plus Sheet Feeder:
- Assemble the Sheet Feeder and secure it to your compatible cutting machine using the included positioning base.
- Connect the Sheet Feeder to your machine using the provided power divider cable.
- Load up to 20 rigid sheets (such as sticker paper or photo paper) into the feeder tray.
- Ensure the sheets are flat and free from static or curling for optimal feeding.
- Open Silhouette Studio® (version 4.5.117 or higher) and select the Auto Sheet Feeder option during your cutting setup.
- Send your job as usual and allow the sheet feeder to process each sheet automatically.
| Model | Compatibility |
|---|---|
| Cameo PRO MK‑II | ✔ |
| Cameo 5 | ✖ |
| Cameo 5 Plus | ✔ |
| Cameo 4 | ✖ |
| Cameo 4 Plus | ✔ |
| Cameo 4 Pro | ✔ |
| Cameo 3 | ✖ |
| Cameo 2 | ✖ |
| Cameo 1 | ✖ |
| Portrait 4 | ✖ |
| Portrait 3 | ✖ |
| Portrait 2 | ✖ |
| Portrait 1 | ✖ |
| Curio 2 | ✖ |
| Curio 1 | ✖ |
🛠️ Based on Silhouette’s official tool compatibility guide. View Guide
Q: What materials can I use with the A3 Plus Auto Sheet Feeder?
A: The feeder works best with rigid materials such as sticker paper and photo paper. Avoid curled or electrostatically charged sheets as they may jam or misfeed.
Q: How many sheets can I load at once?
A: You can load up to 20 sheets at a time, depending on the thickness of your media.
Q: Which machines are compatible with the A3+ Auto Sheet Feeder?
A: This model is compatible with the Silhouette Cameo® Pro and Silhouette Cameo® Plus machines only.
Q: Do I need a specific software version to use this feeder?
A: Yes, the Auto Sheet Feeder requires Silhouette Studio® version 4.5.117 or higher to function properly.
Q: Is Bluetooth® supported?
A: No, the feeder operates via USB 2.0 high-speed connection only. Bluetooth® is not supported.
