Description

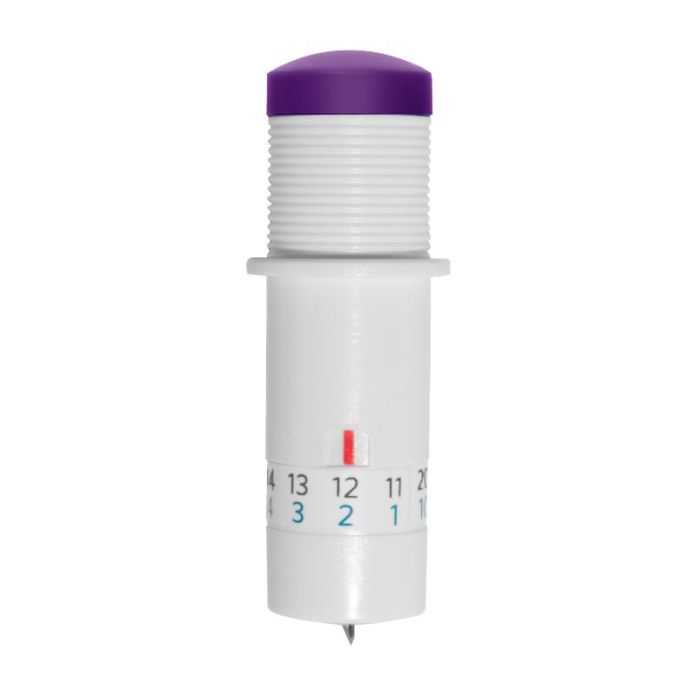

The Silhouette Deep-Cut Blade is designed for cutting thicker materials like craft foam, felt, and chipboard up to 2mm in thickness. It features a manual depth adjustment and is compatible with select Silhouette machines, including CAMEO 3, Portrait 2, and Curio. This blade allows for precise cutting through dense materials.
- Blade Type: A
- Blade Material: Tungsten Alloy
- Cutting Depth: Up to 2mm
- Adjustment Method: Manual (ratchet) adjustment
- Includes: 1 Blade per pack
- UPC: 819177025578
To use the Silhouette Deep-Cut Blade:
- Insert the Deep-Cut Blade into the appropriate tool carriage on your Silhouette machine.
- Manually adjust the blade depth using the ratchet mechanism. Turn the cap to align the red line with the desired material thickness (up to 2mm).
- Place your material onto the cutting mat and load it into the machine.
- In Silhouette Studio®, select the appropriate material settings for the material you’re cutting (craft foam, felt, chipboard, etc.).
- Send the cutting job to the machine and monitor the progress to ensure a clean cut.
- After cutting is completed, remove the material from the mat and gently remove it from the blade.
Tip: Always clean the blade after use by wiping it gently with a soft cloth to remove any debris and store it in a safe place.
| Model | Compatibility |
|---|---|
| CAMEO PRO MK‑II | ✔ (Requires White Tool Adapter) |
| CAMEO 5 | ✔ (Requires White Tool Adapter) |
| CAMEO 5 Plus | ✔ (Requires White Tool Adapter) |
| CAMEO 4 | ✔ (Requires White Tool Adapter) |
| CAMEO 4 Plus | ✔ (Requires White Tool Adapter) |
| CAMEO 4 Pro | ✔ (Requires White Tool Adapter) |
| CAMEO 3 | ✔ |
| CAMEO 2 | ✖ |
| CAMEO 1 | ✖ |
| Portrait 4 | ✔ (Requires White Tool Adapter) |
| Portrait 3 | ✔ (Requires White Tool Adapter) |
| Portrait 2 | ✔ |
| Portrait 1 | ✖ |
| Curio 2 | ✔ (Requires White Tool Adapter) |
| Curio 1 | ✔ |
🛠️ Based on Silhouette’s official tool compatibility guide. View Guide
Q: What materials can the Deep-Cut Blade cut?
A: The Deep-Cut Blade is designed to cut thicker materials such as craft foam, felt, and chipboard up to 2mm in thickness. It provides precise cuts for these dense materials.
Q: Do I need an adapter to use the Deep-Cut Blade with my machine?
A: No, the Deep-Cut Blade does not require an adapter for any of the compatible machines listed above.
Q: How do I adjust the blade depth?
A: The blade depth is adjusted manually using the ratchet mechanism. Turn the cap to align the red line with the desired number, corresponding to the material thickness.
Q: How do I clean and maintain the Deep-Cut Blade?
A: After use, clean the blade by gently wiping it with a soft cloth to remove any debris. Store it in a safe place to prevent damage.
