Description
Overview & Features
The Silhouette Cameo 5 offers a powerful, compact solution for cutting a wide range of materials with incredible accuracy. Its 12-inch cutting width makes it ideal for hobbyists and small business owners alike. Featuring improved tool compatibility, reduced noise, and precision matless cutting, the Cameo 5 continues Silhouette’s legacy of design innovation and cutting excellence.
Key Features
- 12-Inch Cutting Width: A perfect balance of workspace and compact size for a variety of home and professional projects.
- Power Tool Compatibility: Supports a range of optional tools like the Heat Pen Tool and Embossing Tool.
- Matless Cutting Capability: Allows select materials to be cut without a mat, ideal for long designs on vinyl or heat transfer.
- Quieter Operation: Improved motor architecture for reduced noise during cutting.
- AutoBlade 2 Compatibility: Automatically adjusts blade depth based on material selected in the software.

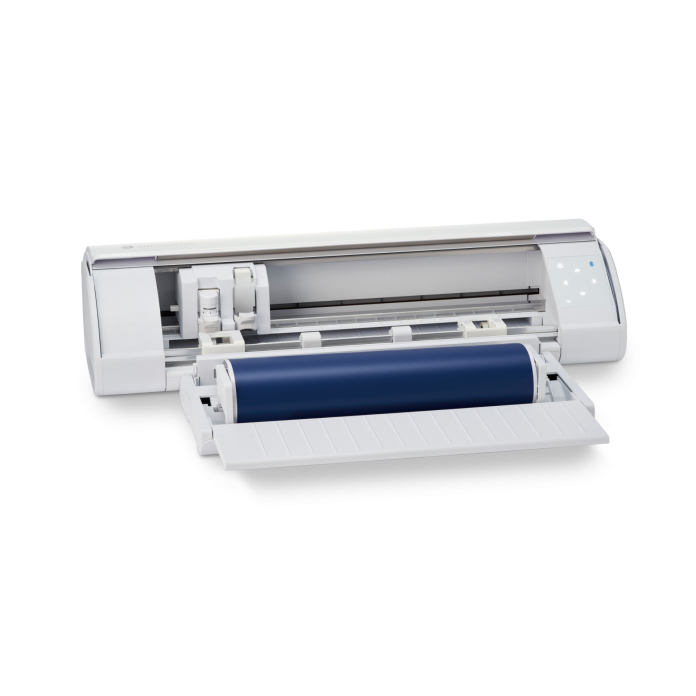

- Built-in Roll Feeder: Easily cut rolled materials like vinyl for projects up to 12 inches wide and 16 feet long.
- Bluetooth® Connectivity: Cut wirelessly for greater convenience and workspace flexibility.
- Silhouette Studio® Software: Create, import, and customize designs with intuitive, powerful design tools.
Technical Specifications
- Cutting Area: 12 in. x 12 in. (30.5 cm x 30.5 cm) with a cutting mat
- Maximum Cutting Length: 11.6 in. x 16 ft. (29.5 cm x 487.7 cm) with lined material using a Roll Feeder
- Maximum Material Thickness: 3 mm (118.11 mils)

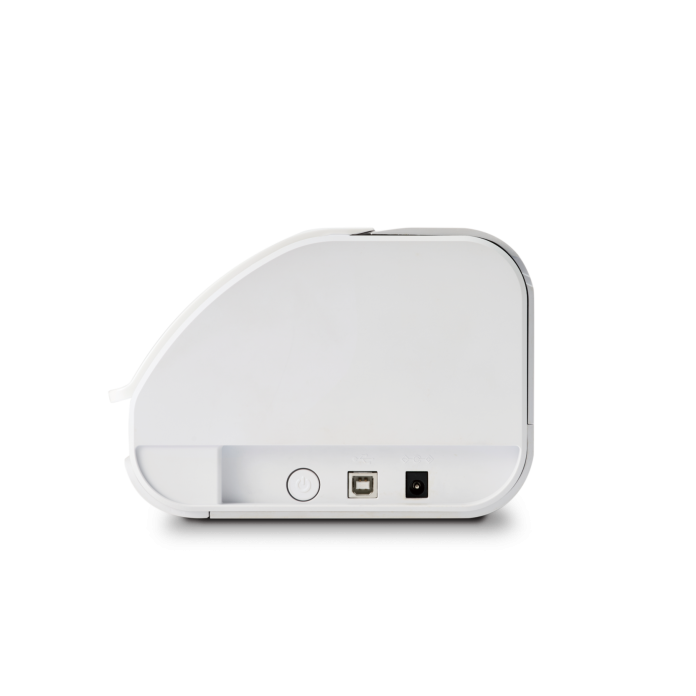

- Interface: USB 2.0 (Full-speed) / Bluetooth®
- Unit Dimensions: 22.28 in. x 6.94 in. x 4.89 in. (56.6 cm x 17.6 cm x 12.4 cm)
- Unit Weight: 11 lbs. 2.1 oz (5.05 kg)
- Shipping Dimensions: 24.80 in. x 10.75 in. x 9.45 in. (63 cm x 27.3 cm x 24 cm)
- Shipping Weight: 16 lbs. 13.1 oz (7.63 kg)
- Warranty: One year parts and labor (Limited to USA and Canada only)
- Requires Silhouette Studio® software version: 4.5.700 or higher
- Minimum System Requirements: Windows 10 or later, macOS 13 or later
-
Machine Features:
- Power tool compatibility
- Auto-cross cutting with the AutoBlade
- Quiet cutting operation
- Electrostatic mat (optional)

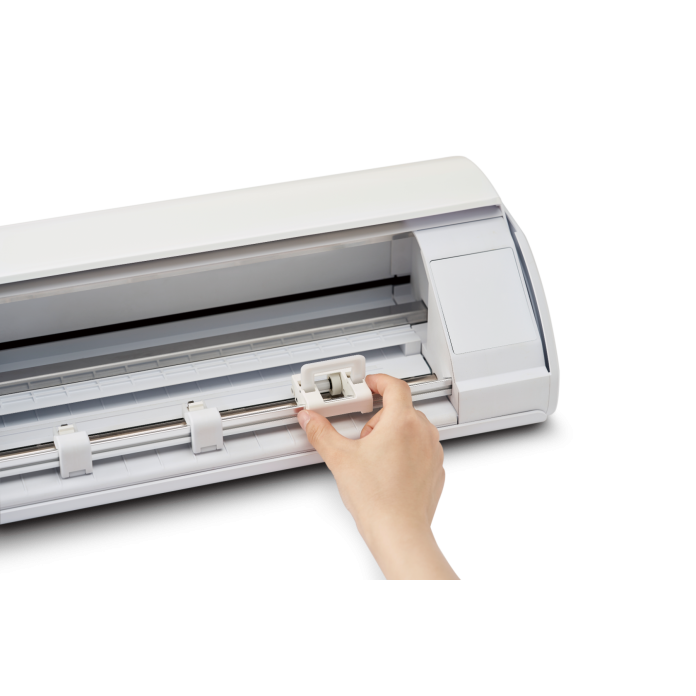

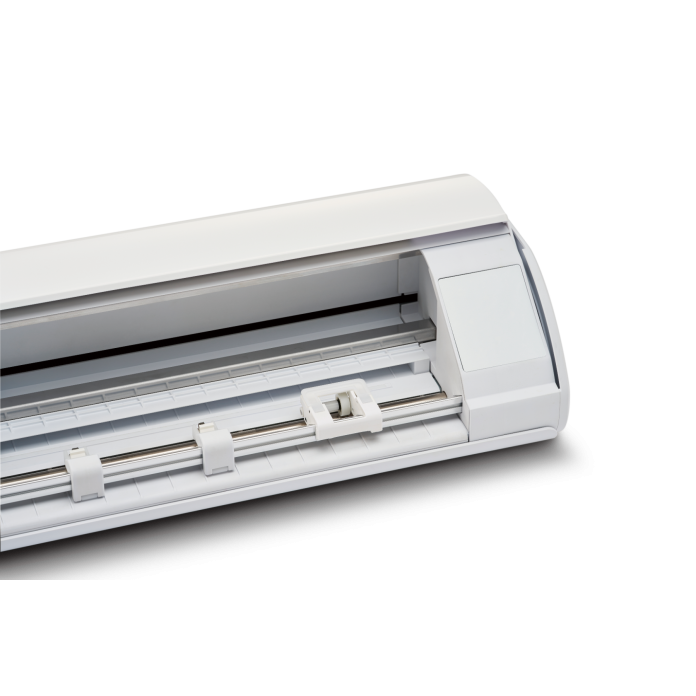

- Adjustable pinch rollers with improved grip
- Improved Print & Cut registration scanning
- Matless cutting support
- Automatic tool detection
- Bluetooth® wireless connectivity
- PixScan™ compatible
-
Additional Tools:
- Heat Pen Tool
- Embossing Tool
- Pen Holder
Contains
- Silhouette Cameo® 5 White
- AC Adapter/Power Cable Set

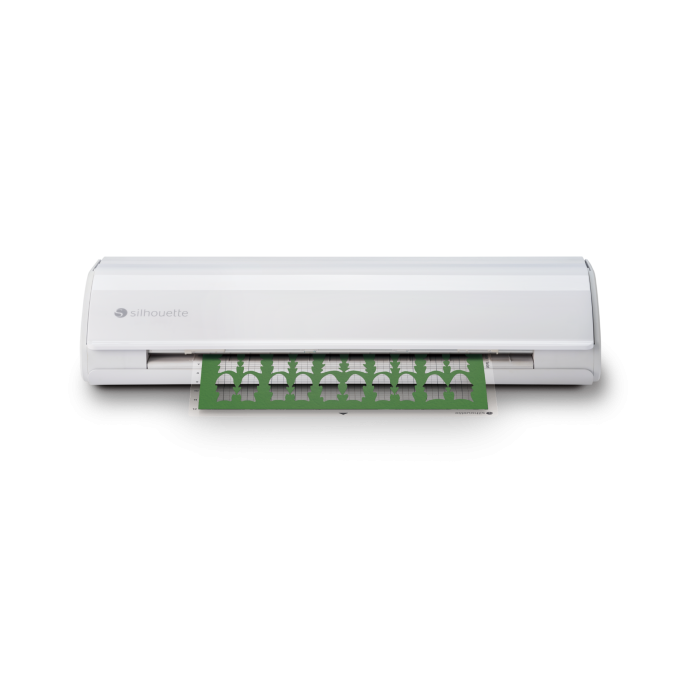

- 12-Inch Cutting Mat
- AutoBlade 2
- Blade Adjustment Tool
- Roll Feeder
- Silhouette Studio® Software (Download)
- 100 Exclusive Designs (Available with Registration)
- 1-Month Silhouette Design Store Subscription (Available with Registration)
FAQ, Warranty & Software
FAQ
Q: What materials can the Cameo 5 cut?
A: The Cameo 5 can cut a variety of materials including vinyl, paper, cardstock, sticker sheets, and select fabrics.
Q: Is software included?
A: Yes, the Cameo 5 comes with Silhouette Studio® software, available as a download after registration.
Q: Where can I find more self-help resources?
A: For more self-help articles and solutions, visit our Self-Help & Support Page.
Warranty
If you need assistance with warranty-related issues or have questions about your product, please feel free to reach out to our support team at support@silhouetteamerica.com.
For more detailed warranty information, visit our Warranty Information Page.
Make sure to register your device to activate your 1-Year Free Warranty. To register, visit Register Your Silhouette Machine.
Software
The Silhouette Cameo 5 works seamlessly with Silhouette Studio®, the software that powers your design and cutting projects. Download and install the software to access a wide range of features for designing, customizing, and cutting your projects.
For tutorials, tips, and inspiration, visit Silhouette 101 and check out the Silhouette YouTube Channel for helpful guides.
